Fire Entrapments
Comparing Conditions Inside
Vehicles and Fire Shelters

Test Results

Specific burn tests were conducted on three sites between February and July 1996:

  • Lake City, FL (February 1996)-in cured bunchgrass, and matted grass and thatch (NFFL Model 3):
  • Valencia, CA (June 1996)-in 2- to 3- foot (0.6- to 0.9-m) tall chamise with a cured grass understory (NFFL Model 4):
  • Beaverhead National Forest, MT (July 1996)-in lodgepole pine slash (NFFL Model 12).

Florida Burn

At Lake City, FL, two surplus vehicles were selected for testing: the first was a standard wildland engine; the second was a standard pickup truck used for carrying a crew, with a slip-on pump and tank unit in the back.
The first burn was conducted on February 27, 1996, on an open, grasscovered field that had dry, cured bunchgrasses 30 to 36 inches (76 to 91 cm) tall, with a 2- to 4-inch (5 to 10 cm) mat of cured grass and thatch on the ground. The burn was in late afternoon with a 3- to 5-mile per hour wind. It was over in less than 1 minute, and had neither the intensity nor the duration to seriously test the survivability of the shelters or the engines (Figure 13).

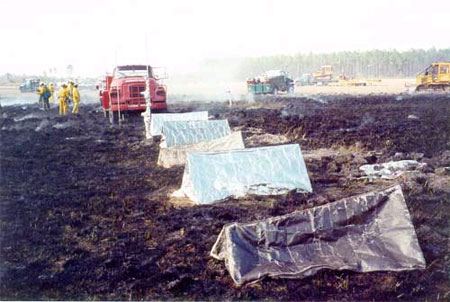

Figure 13-The Florida burn was not intense enough and did not burn for long enough to seriously test survivability inside either the shelters or the vehicles.

Despite the brief duration and low intensity of this burn, some meaningful data were gathered:

  • The peak air temperature was 650 °C in front of the engine and 950 °C in front of the pickup truck, as measured by the thermocouple trees.
  • In the grass fuel type, air temperatures decreased as the height above ground level (AGL) increased.
  • Air temperatures inside the engine cabs cooled more slowly than air temperatures outside after the burnover.
  • Maximum heat flux was 70 kW/m2, decreasing with the height above ground level.
  • Fire shelters subject to the burnover showed no visible signs of damage, although the stainless steel prototype shelter had some discoloration.
    Air temperatures inside the shelters were 20 to 40 °C lower at 1 inch (3 cm) AGL than at the thermocouple 12 inches (30 cm) AGL.
  • Temperatures less than 3 feet (0.9 m) above the ground surface were 1000 °C, with a heat flux of 8 kW/m2.
  • Personal protective equipment laid out in the fuels suffered varying degrees of damage: the Military Nomex flight suit was badly damaged, as was the FR cotton brush coat. The standard FS Nomex shirt and trousers showed signs of the heat, but were not destroyed. They would have offered some protection from serious burns (Figure 14).

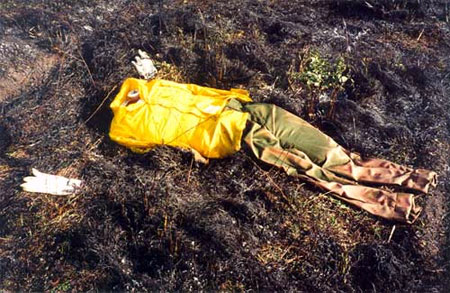

Figure 14-The change in color of the pants shows the effect of heat. Water bags inside the fire shirt and upper pants served as a heat sink, keeping them from becoming as hot as the pant legs.

A second burn was planned in a heavier palmetto-galberry fuel type (NFFL Model 7). Heavy rains prevented us from conducting the burn as planned.

In summary, this burn served as a good "shakedown" for the procedures and techniques used in future tests, but it was not long enough or hot enough to develop meaningful data about the differences between the protection offered by a fire shelter and an engine cab.
